Specifications

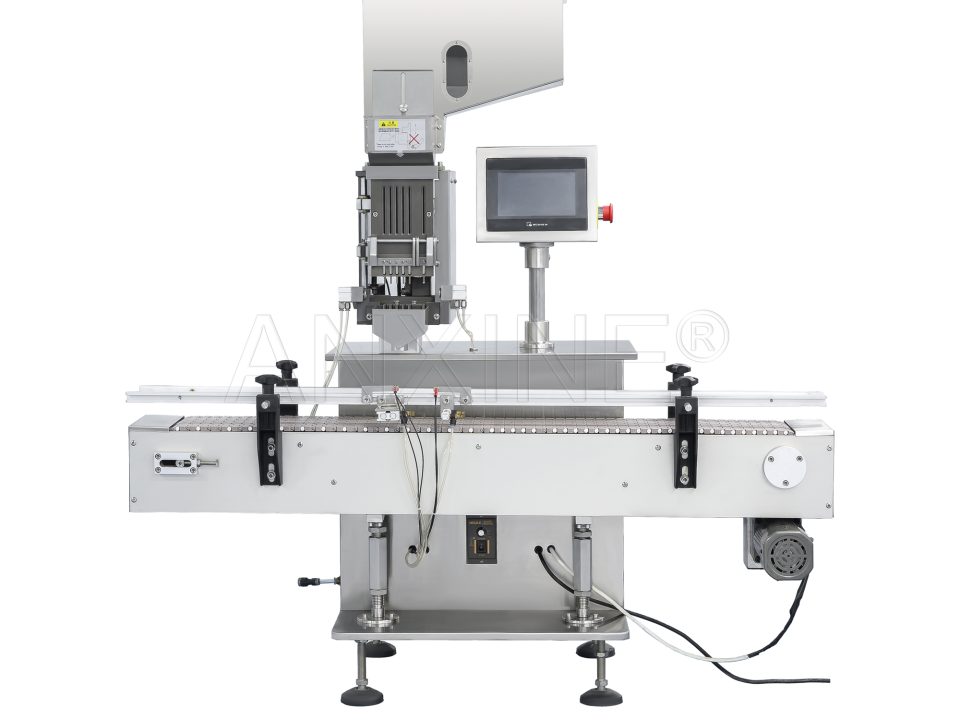

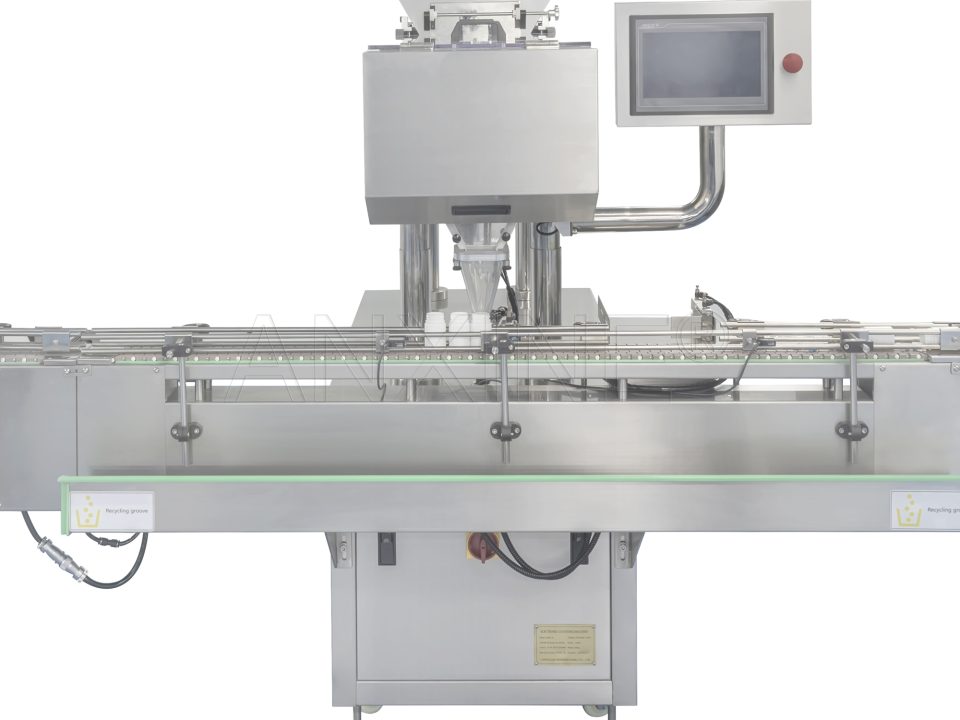

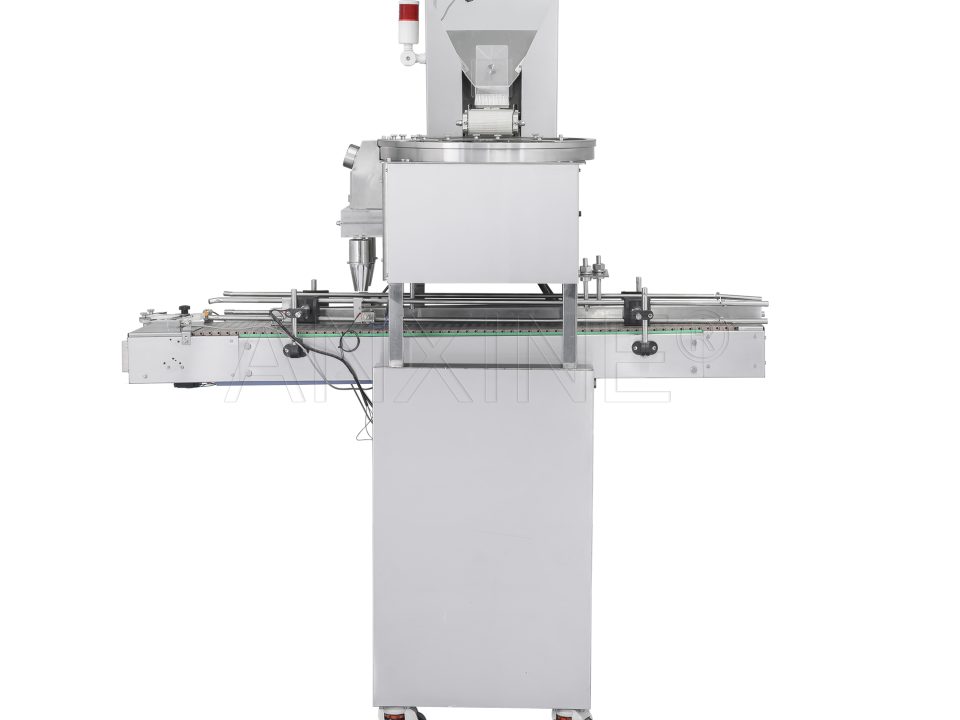

We provides a variety of specifications available for electrical counting machines: they are 8 channels, 16 channels, 12 channels, 24 channels, 8 channels with double nozzles, 16 channels with 4 nozzles.
| Model | NPC-8 | NPC-12 | NPC-16 | NPC-24 |
|---|---|---|---|---|
| Production capacity | 10~50 bottles/min | 20~55 bottles/min | 60-100 bottles/min | 80-150 bottles/min |
| Container size | Dia.:20~100mm Height:50-100mm |
Dia.:20~100mm Height:40~200mm |
Dia.:20~100mm Height:40~220mm |
Dia.:20~100mm Height:40~220mm |
| Size of capsule/tablet | Caps: #00-#4 Tablets:Ф5.5-22mm |
Caps: #00-#4 Tablets:Ф5.5-22mm |
Caps: #00-#4 Tablets:Ф5.5-22mm |
Caps: #00-#4 Tablets:Ф5.5-22mm |
| Main power | 0.4kW | 1.5kW | 1.5kW | 1.7kW |
| Power supply | 110V 60Hz / 220V 50Hz (Customizable) | |||
| Weight | 280kg | 300kg | 360kg | 580kg |
| Overall dimensions | 1600x1500x1600mm | 1600x1500x1600mm | 2600x1600x1600mm | 4200x1800x1600mm |
Get Instant Budgetary Quote
- Engineer will respond within 24 hours
- FAT report and acceptance criteria available before order
- Confidentiality for samples and drawings (NDA available)
FAQ
Q: What performance can I expect (accuracy and speed)?
A: Typical counting accuracy ≥99.9%, validated with your samples during FAT/SAT. Bottle speed ranges from 10–150 bpm depending on product, bottle, and model (NPC-8/12/16/24). We recommend a configuration based on your target throughput.
Q: Which products and bottles are supported?
A: Tablets, capsules (sizes 0–4), softgels, and odd-shaped tablets. Works with transparent and opaque bottles. Final boundaries are confirmed via sample test.
Q: How long does changeover and cleaning take?
A: Tool-less quick-release parts; typical changeover is 10–15 minutes. Cleaning SOP is provided and materials are compatible with pharma/healthcare requirements.

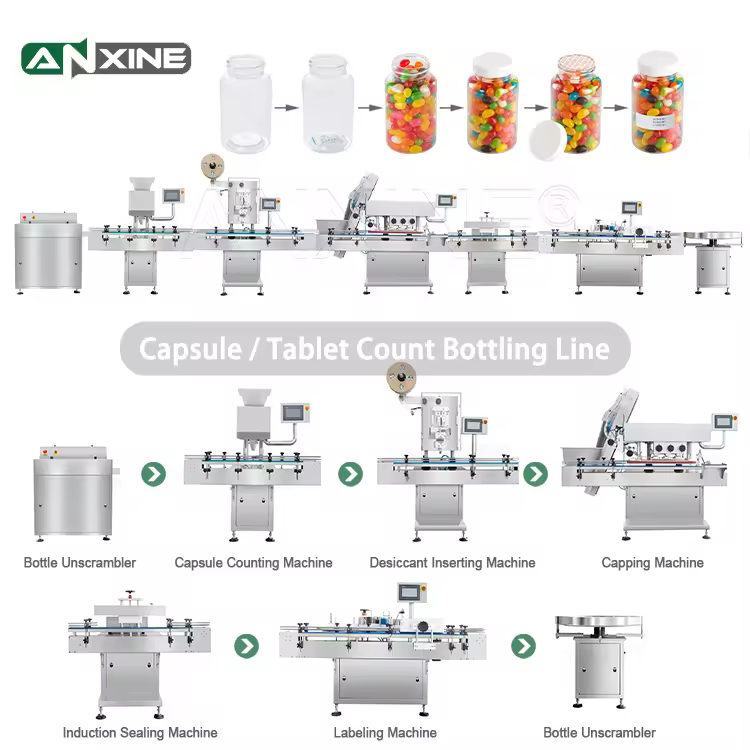

Q: Can the counter integrate with my filling, capping, labeling, and coding line?
A: Yes. Integration via PLC/IO or industrial bus for synchronized throughput and rejection. Layout CAD and interface documentation are available.
Q: What are the commercial terms (price, lead time, payment)?
A: Budget depends on lanes, vision/detection, dust control, and integration. Standard lead time is 25–35 days; customized 45–60 days. Payment terms include T/T (e.g., 30/70) or L/C, with Incoterms FOB/CIF/DAP.
Q: What warranty and support do you offer?
A: 12-month warranty. Typical service SLA: 60-minute response during business hours, remote diagnosis within 4 hours, and onsite support within 48–120 hours (location-dependent). Spare parts and wear items are stocked.
Q: What compliance and documentation are available?
A: ISO9001 and CE Declaration, material certificates (e.g., 316L), cleaning SOP. IQ/OQ templates and FAT/SAT checklists are available. Optional 21 CFR Part 11 features (audit trail, user permissions) can be provided.
